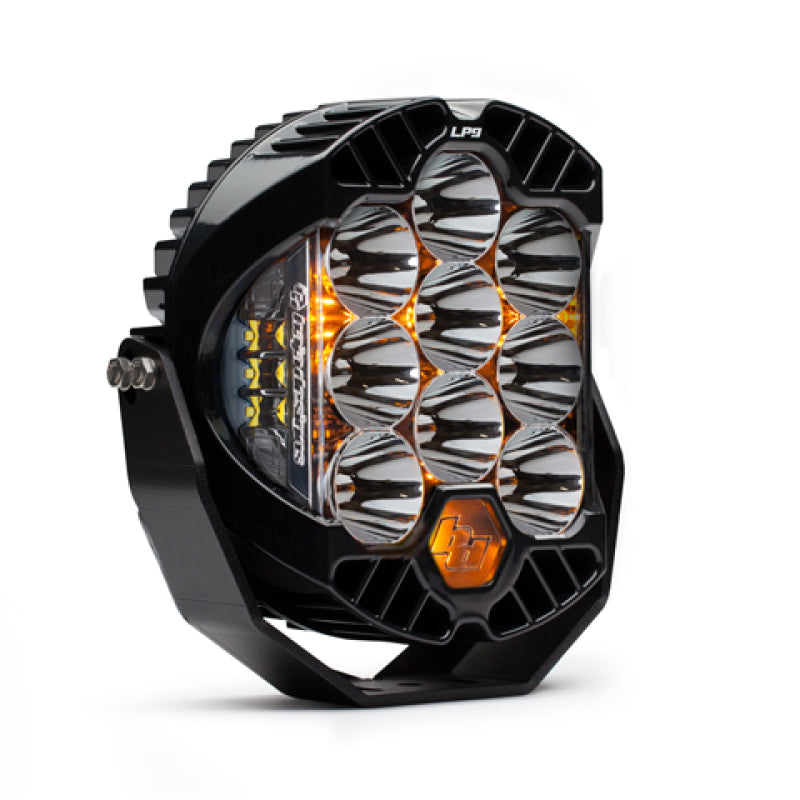

Baja Designs LP9 Racer Edition High Speed Spot Pattern LED Light Pods 330001

Baja Designs LP9 Racer Edition Series High Speed Spot Pattern LED Light Pods - Clear

A design that was inspired by Baja Designs’ legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light. The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs. Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Dimensions

Depth (in.) 3.250

Height (in.) 8

Length (in.) 8

Weight (lbs.) 6.500

Specifications

Amperage Rating (A) 9.600

Average Rated Life (hr.) 49,930

Backlight Amperage Rating (A) 0.200

Backlight Wattage (W) 2.800

Beam Pattern Racer Edition Spot

Bezel Material Billet Machined Aluminum

Brightness (Lumens) 8374

Description Racer Edition Spot; Clear

Housing Color Black

Housing Material Hard Anodized Machined Aluminum

Lens Color Clear

Lens Material Hardcoated Polycarbonate

Light Quantity 1

Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting

Lighting Quantity 9

Lighting Technology LED

Lighting Type Forward Projecting

Mounting Hardware Included Yes

Mounting Hardware Material Stainless Steel

Overvoltage Protection Built-In

Product Type LP9 Racer Edition LED Light Pod

Secondary Amperage Rating (A) 1.520

Secondary Brightness (Lumens) 2302

Secondary Light Quantity 6 LEDs

Secondary Lighting Technology LED

Secondary Lighting Type Integrated Peripheral Technology (IPT)

Secondary Wattage (W) 21

Terminal Connector DT06-4S Deutsch

Terminal Type Mating Connector

Universal or Specific Universal

Wattage (W) 132.480

Wiring Harness Included No

Standards & Compliance

Patent No. 5,504,603

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)

Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)

Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
