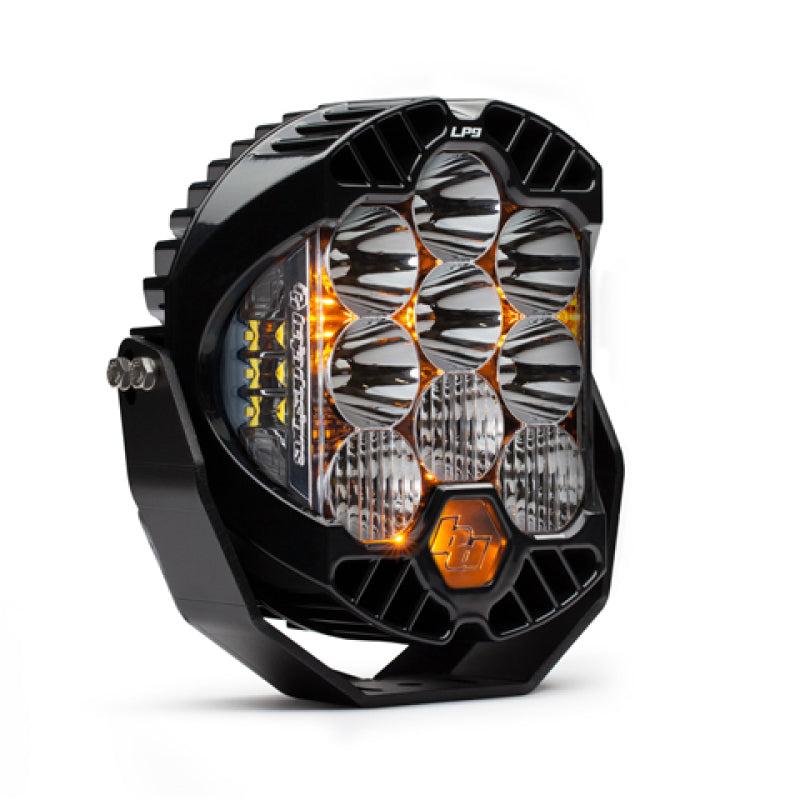

Baja Designs LP9 Series Driving Combo Pattern LED Light Pods - Clear 320003

Baja Designs LP9 Series Driving Combo Pattern LED Light Pods - Clear W/ Amber Backlight

A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

The LP9 Pro is available in multiple patterns to suit your needs. The driving/combo pattern provide maximum trail coverage in a single light. The driving/combo pattern is equipped with both driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.

The addition of red, blue, or green backlight options alongside our original amber on the LP6 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.

Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are for EXHIBITION USE ONLY. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Safely Driving LEDs at 100%

5000K Daylight – Less Driver Fatigue, Natural Color

Dimensions

Depth (in.) 3.250

Height (in.) 8

Length (in.) 8

Weight (lbs.) 6.500

Specifications

Amperage Rating (A) 9

Average Rated Life (hr.) 49,930

Backlight Amperage Rating (A) 0.200

Backlight Wattage (W) 2.800

Beam Pattern Driving/Combo

Bezel Material Billet Machined Aluminum

Brightness (Lumens) 12547

Description Driving/Combo; Clear

Housing Color Black

Housing Material Hard Anodized Machined Aluminum

Lens Color Clear

Lens Material Hardcoated Polycarbonate

Light Quantity 1

Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting

Lighting Quantity 9

Lighting Technology LED

Lighting Type Forward Projecting

Mounting Hardware Included Yes

Mounting Hardware Material Stainless Steel

Overvoltage Protection Built-In

Product Type LP9 Pro LED Light Pod

Secondary Amperage Rating (A) 1.520

Secondary Brightness (Lumens) 2302

Secondary Light Quantity 6 LEDs

Secondary Lighting Technology LED

Secondary Lighting Type Integrated Peripheral Technology (IPT)

Secondary Wattage (W) 21

Terminal Connector DT06-4S Deutsch

Terminal Type Mating Connector

Universal or Specific Universal

Wattage (W) 124.200

Wiring Harness Included No

Standards & Compliance

Patent No. 5,504,603

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)

Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)

Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
