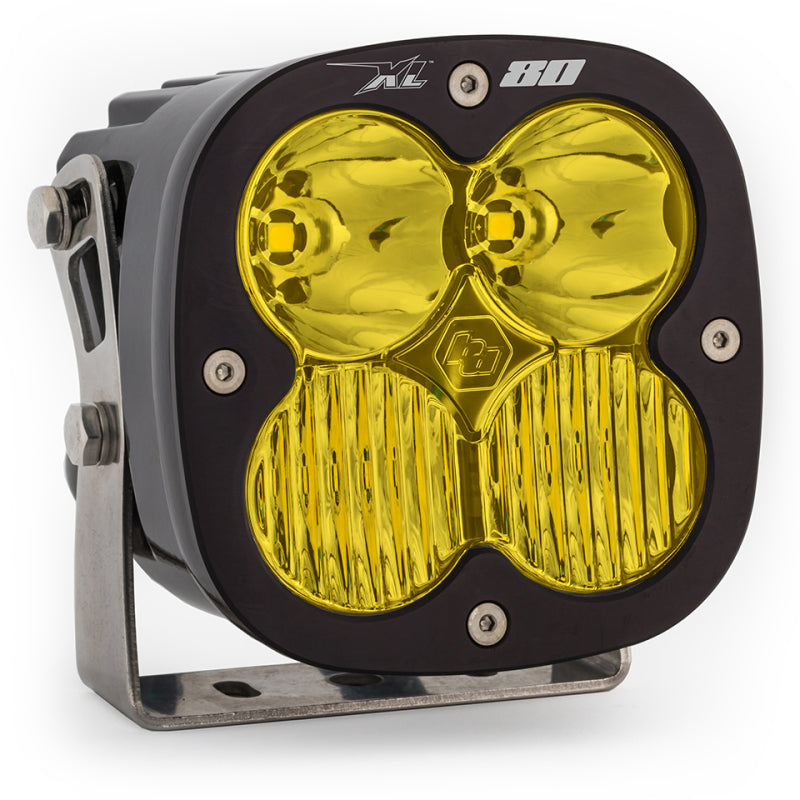

Baja Designs XL80 Driving/Combo LED Light Pods - Amber 670013

The Baja Designs XL80 auxiliary LED light takes your off-road lighting to the next level, offering superior visibility and increased brightness. Using our trademarked high-speed spot reflectors, the XL80 delivers a longer and wider beam pattern. This powerful next-generation LED technology provides 18% greater distance and increased intensity over our previous model, pushing an impressive 9,022 raw lumens per light. Perfect for any off-road vehicle, including trucks, vans, UTVs, and motorcycles.

ELS™ Scores:

Click to learn more about our Effective Lighting Score (ELS)

XL80 Driving Combo (Clear): ELS 62°/ 5.0/ 392'/ 8278

XL80 Wide Cornering (Clear): ELS 66⁰/ 6.1/ 202'/ 8063

Lens Pattern Options:

Driving Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

Wide Cornering: The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.

Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.

Lens Color:

Clear: The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.

Baja Amber:This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640115.

Dimensions

Depth (in.) 3.650

Height (in.) 4.430

Length (in.) 4.430

Weight (lbs.) 2.450

Specifications

Amperage Rating (A) 5.500

Mounting Hardware Material Stainless Steel

Mounting Hardware Included Yes

Lighting Type Forward Projecting

Lighting Technology Cree LED

Lighting Quantity 4

Lighting Modes High Beam/Dimming Feature (20%)

Light Quantity 1

Lens Material Hardcoated Polycarbonate

Lens Color Amber

Housing Material Hard Anodized and Powder Coated Cast Aluminum

Housing Color Black

Description Driving/Combo; Amber

Brightness (Lumens) 9022

Bezel Material Powder Coated Cast Aluminum

Beam Pattern Driving/Comb

Average Rated Life (hr.) 49,930

Overvoltage Protection Built-In

Product Type XL80 LED Light Pod

Wiring Harness Included No

Wattage (W) 75.900

Universal or Specific Universal

Standards & Compliance

Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
