Borg Warner Turbocharger SX S300SX3 S366 66mm T4 .88A/R 320-800HP 177281

BorgWarner Turbocharger SX S300SX3 T4 A/R .88 66mm Inducer

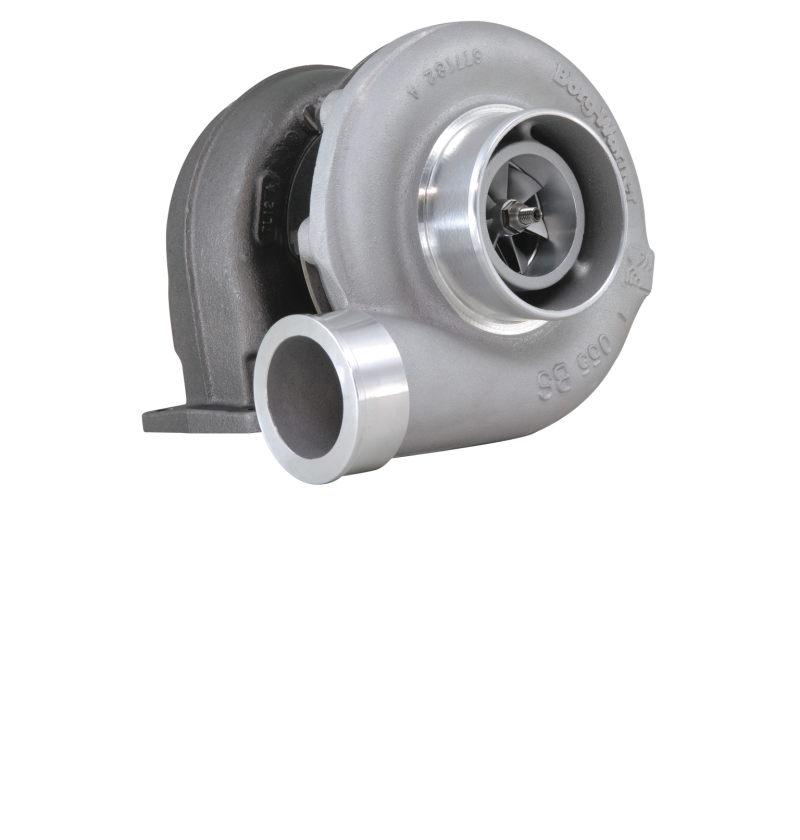

This is the BorgWarner S300SX3 aka S366 turbocharger featuring extended tip compressor wheel technology for improved airflow and higher pressure ratios.

Compressor

Housing: 4.00" Ported Anti-Surge inlet with 3.00" charge pipe outlet

Inducer: 66.11mm

Exducer: 91.4mm (Extended Tip Technology)

Turbine

Housing: T4 .88 A/R Open Scroll

Inducer: 80mm

Exducer: 73mm

Name S300SX3 S366

Compressor Wheel Inducer 66mm

Wastegated No

Turbo Horsepower Range 250hp - 500hp, 500hp - 750hp, 750hp - 1000hp

Center Cartridge Journal Bearing

Exhaust Housing Inlet T4

Exhaust Housing Material Cast Iron

Compressor Housings 4.0" / 3.0"

Exhaust Wheel Exducer 73mm

Exhaust Housing Outlet 3/4 Marmon 4.21"

Exhaust Housing AR .88

Turbo Rotation Standard Rotation
