CSF High Performance Intercooler Pair fits 19+ Urus 20+ Audi RS Q8/SQ8/SQ7 8211

CSF once again has teamed up with leading Southern California VAG specialists, Pacific German from Orange County, CA to design, develop, and test the new intercooler kit on their very own Lamborghini Urus.The Urus/RS Q8 Intercoolers have been meticulously designed and engineered to fit exactly like the OEM units they replace. Utilizing all factory mounting points, the installation is straightforward with a "drop-in fit" design. No cutting or modifications are required, and there is no need for aftermarket shrouds or hoses. All mating OEM components can be reused and reinstalled.CSF has integrated the charge pipe into the design of the top end tank with an aluminum welded pipe replacing the factory bolt-on plastic part which is sealed with an inner O-Ring. The head technician at Pacific German stated that the OEM O-Rings may be a factory design flaw as they?ve had to replace them on several stock systems already. This failure causes boost leaks and triggers a check engine light which is quite surprising on such a new vehicle.The intercooler cores are spec?d out by CSF and custom built by PWR. Featuring two rows of rolled cooling tubes with inner fins, these cores make for the most efficient intercoolers available. Because of this, they are able to eliminate heat soak and lower IATs much more efficiently than traditional Bar & Plate or Tube & Fin designs. This gives us maximum performance for extended periods of time under demanding driving conditions and for vehicles with increased power levels through modifications and tuning.The CSF Intercoolers feature 100% TIG-welded machined billet aluminum end tanks. This feature is not only aesthetically pleasing, but also offers improved longevity and durability. The CNC machined billet end tanks are ready to withstand increased boost pressures from higher performance tunes, as well as upgraded turbochargers.The CSF #8211R comes in a raw billet aluminum finish. Also available in Thermal Black Heat Dispersion (CSF #8211).

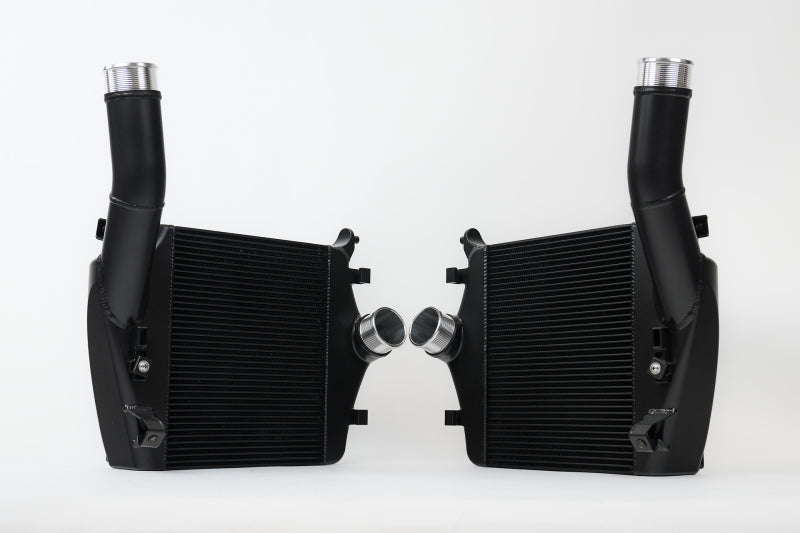

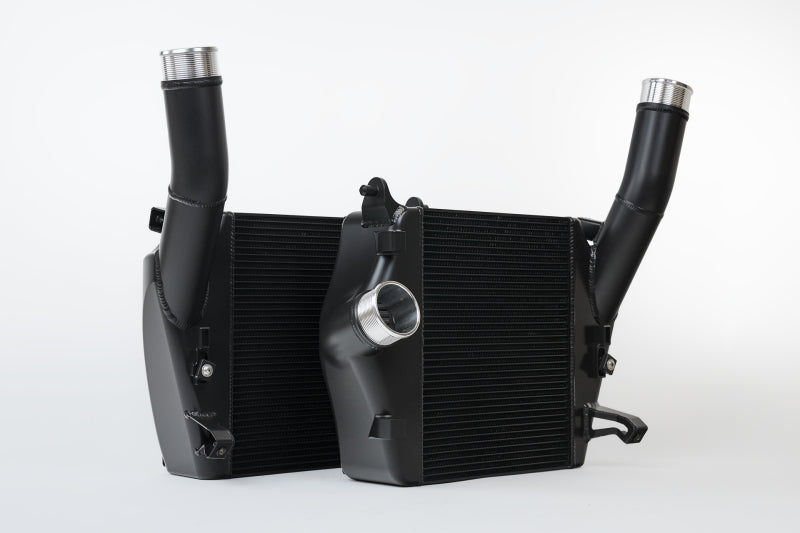

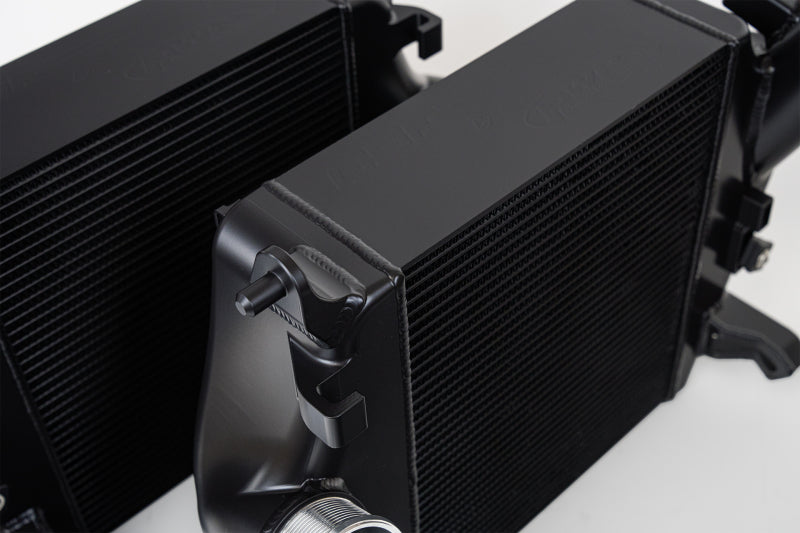

Sold as a pair (Left & Right Intercoolers)

Eliminates Heat Soak and Lower Intake Air Temperatures (IAT) for Maximum Performance in High-Performance and Race Conditions

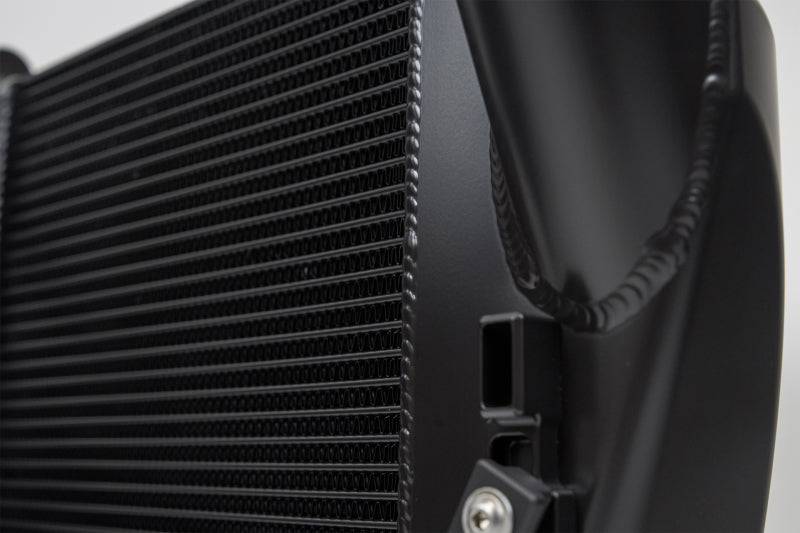

Formula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)

CNC Machined Billet End Tanks

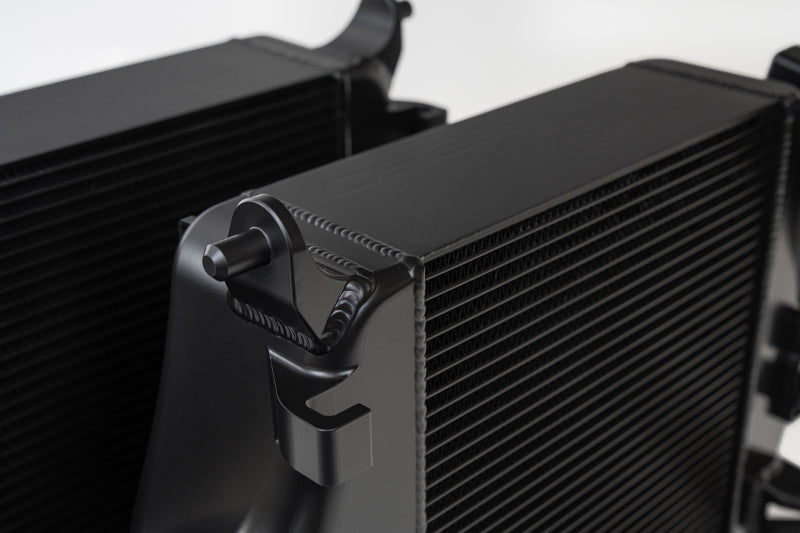

100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability

Made in the USA at PWR North America

Integrated 1/8th NPT Port with plug on lower outlet tank for Water-Methanol Injection

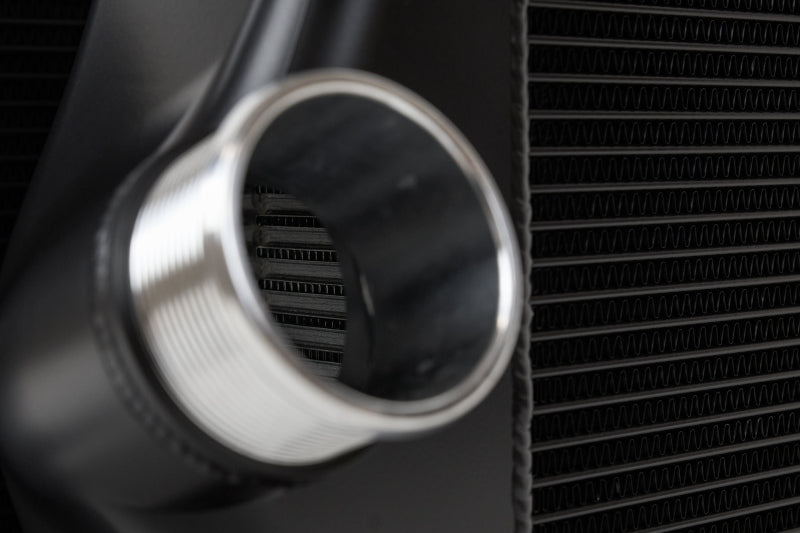

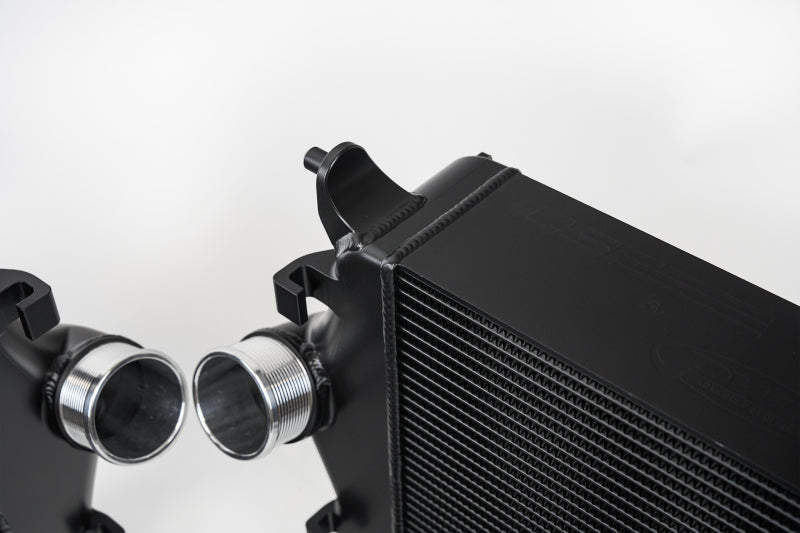

OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components

Finished in CSF’s Thermal Dispersion Cerakote(CSF #8211)

Raw Finish with no coating for the “show” look or custom finishes available upon request (CSF #8211R)

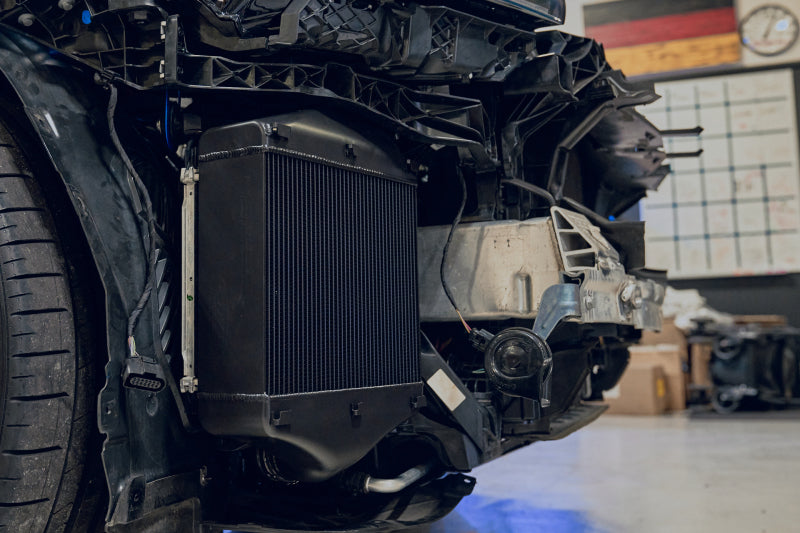

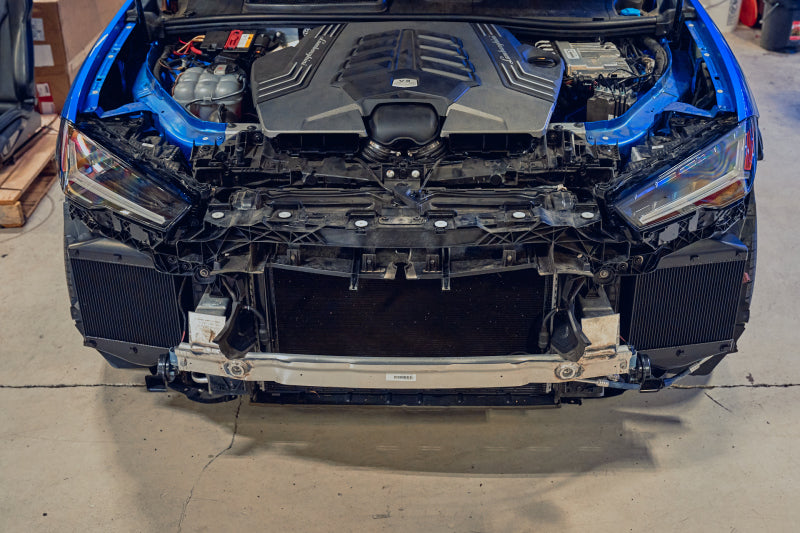

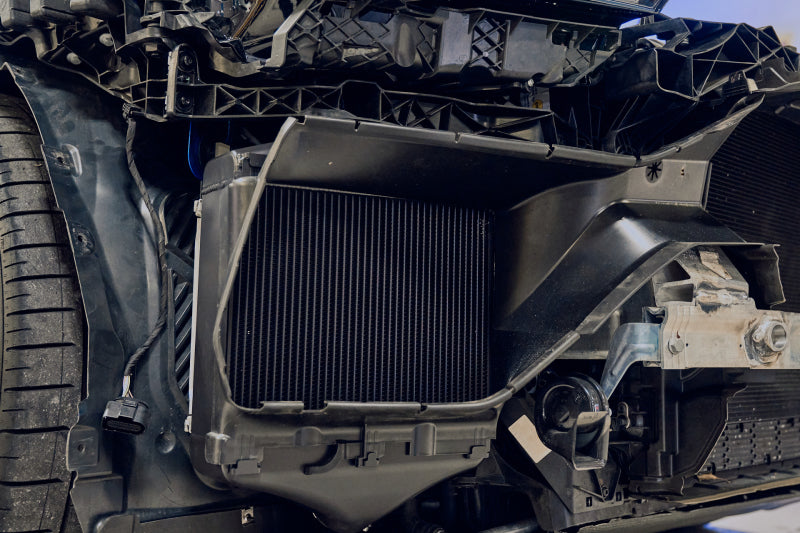

True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications

R&D and Performance Testing by Pacific German & VF Engineering

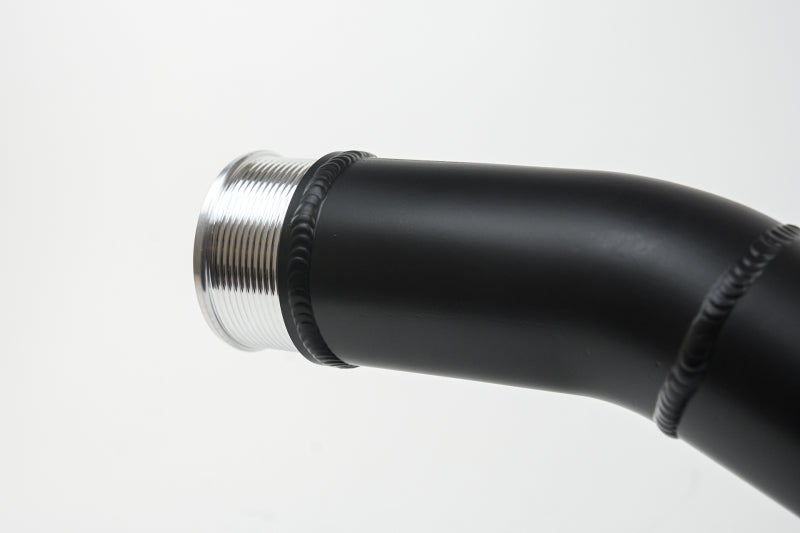

1-Piece Welded Charge Pipe vs OEM Bolt-On Pipe w/ O-Ring (known failure point)

Performance Gains:

Stage 1 (Stock Tune) – Approx. +20 WHP / +18 WTQ*

Stage 2 (With High-Performance Tune) – Approx. +10 WHP / + 20 WTQ*

*Estimated Performance based on same engine platform Audi C8 RS6/RS7 CSF Intercoolers

Applications:

2019+ Lamborghini Urus (incl. S, EVO, & Performante)

2020+ Audi RS Q8

2020+ Audi SQ8*

2020+ Audi SQ7*

2019+ Porsche Cayenne GTS / Turbo / Turbo S / Turbo GT

OEM Part Numbers:

Lamborghini: 4M0145803AK (left) & 4M0145804AK (right)

Audi (RS Q8): 4M0145803BT (left) & 4M0145804BT (right)

Audi (SQ8/SQ7): 4M0145803BM (left) & 4M0145804BM (right)

Porsche (GTS / Turbo / Turbo S): PAB 145 803 B (left) & PAB 145 804 B (right)

Porsche (Turbo GT): PAB 145 803 E (left) & PAB 145 804 D (right)

This Part Fits:

Year	Make	Model	Submodel
2020-2024	Audi	RS Q8	Base
2020-2023	Audi	SQ7	Premium Plus
2020-2023	Audi	SQ7	Prestige
2020-2023	Audi	SQ8	Premium Plus
2020-2023	Audi	SQ8	Prestige
2019-2022	Lamborghini	Urus	Base
2023	Lamborghini	Urus	EVO
2023-2024	Lamborghini	Urus	Performante
2023-2024	Lamborghini	Urus	S
2021-2023	Porsche	Cayenne	GTS
2021-2023	Porsche	Cayenne	GTS Coupe
2019-2023	Porsche	Cayenne	Turbo
2020-2023	Porsche	Cayenne	Turbo Coupe
2022-2023	Porsche	Cayenne	Turbo GT Coupe
2020-2023	Porsche	Cayenne	Turbo S E-Hybrid
2020-2021,2023	Porsche	Cayenne	Turbo S E-Hybrid Coupe
