CSF 21+ Ford Bronco 2.7L EcoBoost External Transmission Oil Cooler Kit 8350
CSF 21+ Ford Bronco 2.7L EcoBoost External Transmission Oil Cooler Kit 8350
SKU:CSF8350
Couldn't load pickup availability
CSF leveraged decades of cooling experience to design our first complete Oil Cooler Kit. As a leader in performance cooling technology, CSF wanted to bring the best possible kit to the market. CSF used best in class materials and state of the art technology. This plug-and-play solution is an essential upgrade for the 2.7L Bronco and offers several key benefits:
Keeps transmission fluid under control, even in the toughest off-road conditions
Extends transmission life and reliability
Improves cooling efficiency for towing, crawling, and overlanding
Designed for easy installation with motorsports-grade components
Eliminates clearance issues with original transmission cooler
Delivers peace of mind through proven CSF engineering

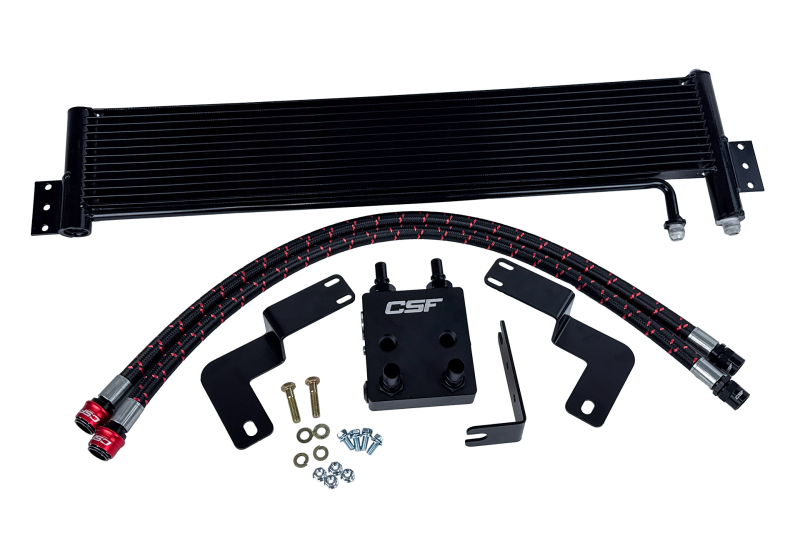

All the major components of the kit are bespoke and were made to CSF’s meticulous specifications.
Specially designed CSF Transmission Cooler Heat Exchanger
Laser Cut Brackets and Hardware
Custom Motorsport-grade lines and patented quick-release fittings by DYME PSI
CNC Machined Billet Aluminum Thermostatic Plate
CSF vs OEM
The OE Transmission Oil Cooler from Ford is a small, water-to-oil stack cooler. While adequate for daily driving, it can easily become overwhelmed when these rigs are pushed to their limits. It’s not just high-horsepower builds or hardcore off-roaders who need better cooling. Many overlanders, campers, and weekend adventurers add significant weight and drag to their Broncos. Roof-mounted tents, spare tires, fuel cans, and oversized tires all increase the load on both the engine and transmission. With CSF’s kit, your 2.7L Bronco gains the cooling capacity it should have had from the factory, providing crucial protection and preserving performance.
The CSF system was built around a high-performance transmission oil cooler built with CSF’s Micro Channel Technology. The core features a super-high-pressure 26mm 12-channel microtube design that maximizes oil flow and surface area contact. Constructed of 11 rows of cooling tubes and paired with 12 rows of 8mm multi-louvered high-performance fins, it delivers outstanding heat transfer efficiency. A CNC billet-machined thermostatic plate replaces the factory stack cooler which reroutes transmission fluid to the new cooler mounted in front of the radiator. Motorsport-grade lines and patented quick-release fittings by DYME PSI ensure a clean, fast, and straight-forward installation.
Replacing the OE Cooler with a Billet Block
Some customers might wonder why CSF elected to replace the OE Cooler instead of just looping the cooler off of it like the Bronco Raptor system. There are two important reasons for this:
The factory system does not include a thermostat. This makes it harder for the transmission to reach operating temp quickly, especially on cooler days. CSF integrated a thermostat into the billet plate.
The factory stack style oil cooler can cause some ground clearance issues. Because of its location, many owners have damaged their cooler off-road. Replacing the cooler with the CSF billet-machined plate creates a much more robust system overall.
DYME Performance Systems Inc. Fittings & Hoses
CSF partnered with DYME PSI for their exceptional quality and innovative quick-release hose and fitting solutions. The DYME Pro/Spec Quick Release Fittings offer race-proven performance with the convenience of tool-free clamshell removal and capable of withstanding up to 10,000 PSI. Quick Release fittings make the installation of the CSF kit much faster than traditional threaded fittings. In addition, they make maintenance like fluid changes much less of a headache.
The hoses are a Superstrasse CPE lined stainless steel braided rubber hose for maximum flexibility, flow, and chemical resistance. The lines are ideal for motorsports use and more than capable of handling the rigors of off-roading.
Super-High Pressure 26mm 12-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
11 Rows of Cooling Tubes and paired with 12 Rows of 8mm Tall Multi-Louvered Fins
100% All Aluminum TIG-Welded Construction
Motorsports grade lines with patented quick release fittings by DYME PSI
CNC Billet Machined Thermostatic Plate
Includes all Brackets and Hardware
Includes installation instructions
2-Year Limited Warranty
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2025 | Ford | Bronco | Badlands |
| 2021-2023 | Ford | Bronco | Base |
| 2021-2024 | Ford | Bronco | Big Bend |
| 2021-2024 | Ford | Bronco | Black Diamond |
| 2021 | Ford | Bronco | First Edition |
| 2024-2025 | Ford | Bronco | Heritage Edition |
| 2023-2024 | Ford | Bronco | Heritage Limited Edition |
| 2021-2025 | Ford | Bronco | Outer Banks |
| 2025 | Ford | Bronco | Stroppe Edition |
| 2021-2024 | Ford | Bronco | Wildtrak |
