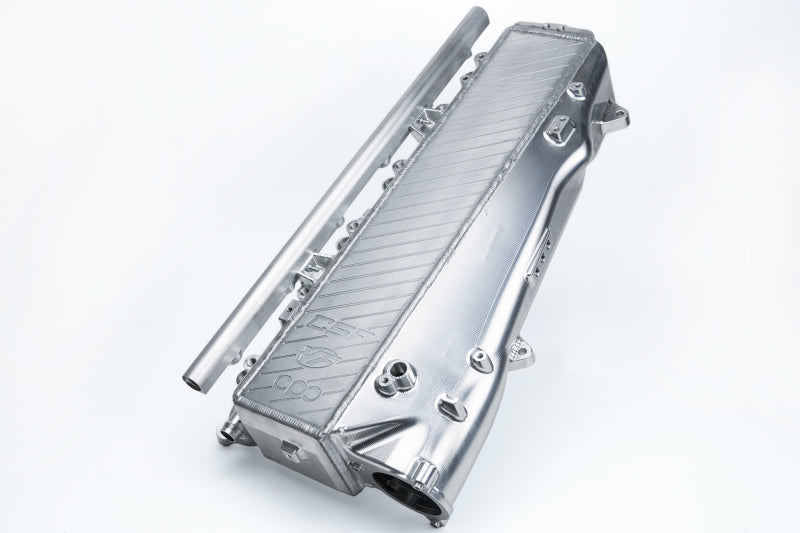

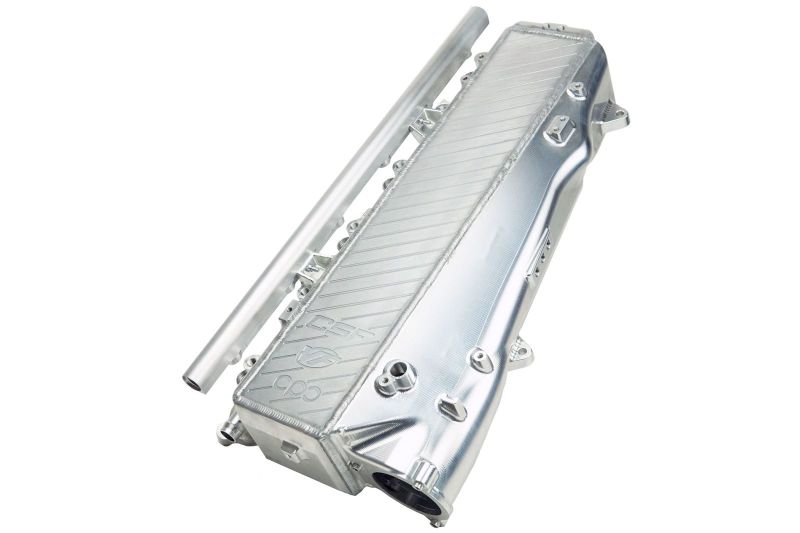

CSF Billet Charge-Air Cooler Manifold fits A90/A91 Supra BMW G-Series B58 8200

CSF, The Cooling Experts, have been serving the US aftermarket for almost 4 decades. With over 30 million units sold, CSF is your exclusive source for Radiators, Condensers, Intercoolers, Inverter Coolers, Racing Radiators and Pressure Caps.

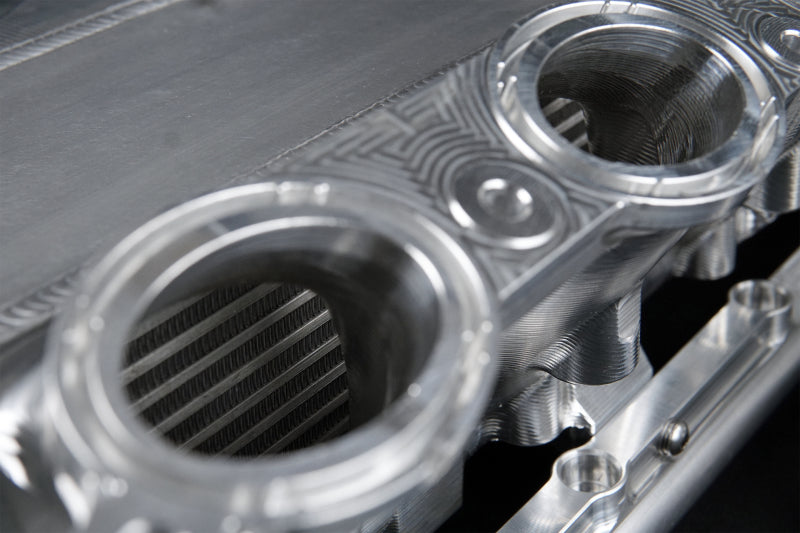

Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core

Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)

Significantly Lower Pressure Drop Across the Core Compared to OEM

Designed in SolidWorks Using Computational Fluid Dynamics (CFD)

Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core

Easy Access to Spin-Off Oil Filter for Quick Oil Changes – No Need to Uninstall Manifold Every Oil Change

Counter Balanced Design for Optimized Airflow

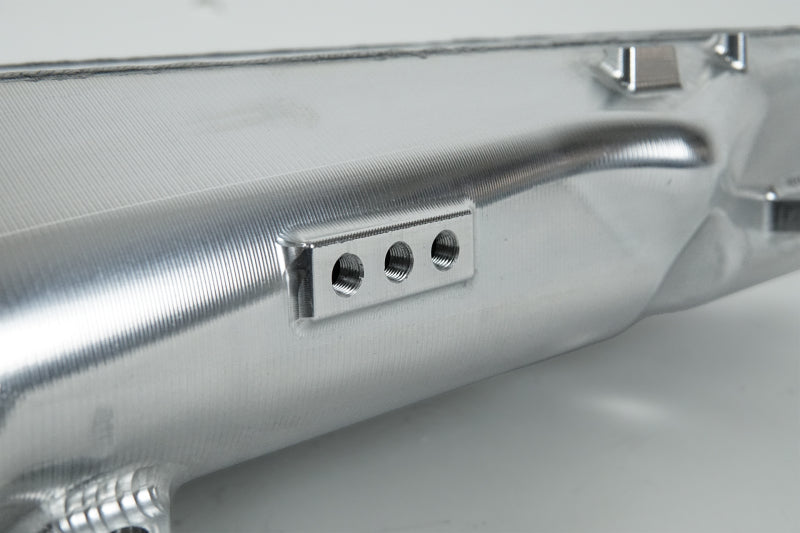

Integrated Sensor Pad with Three 1/8″ NPT Ports to Measure Additional Parameters

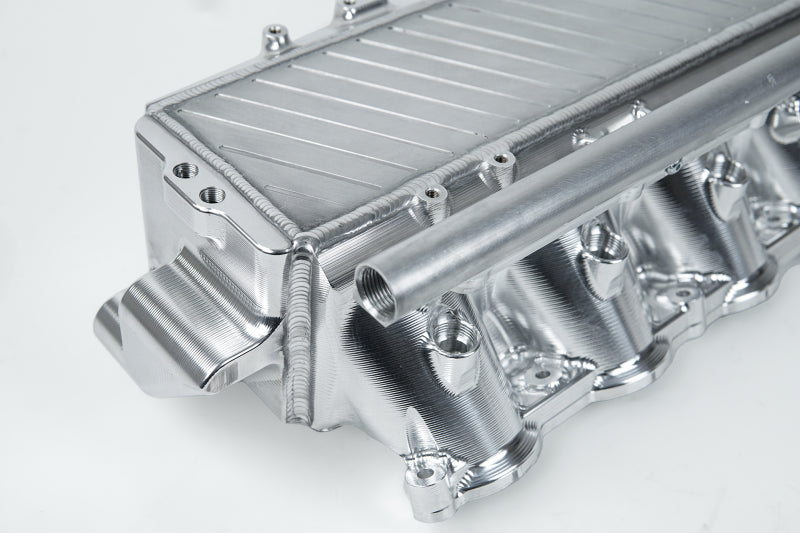

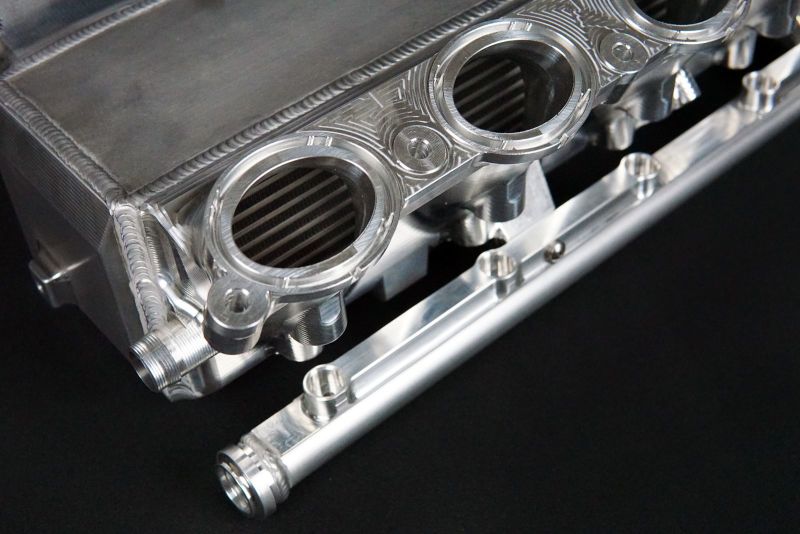

Included Optional Fuel Rail for Top Feed Port Injection

Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)

Individual 1/8″ NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection

Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection

Individual 1/8″ NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System

Plug-and-Play design, Requiring No Modifications to Install

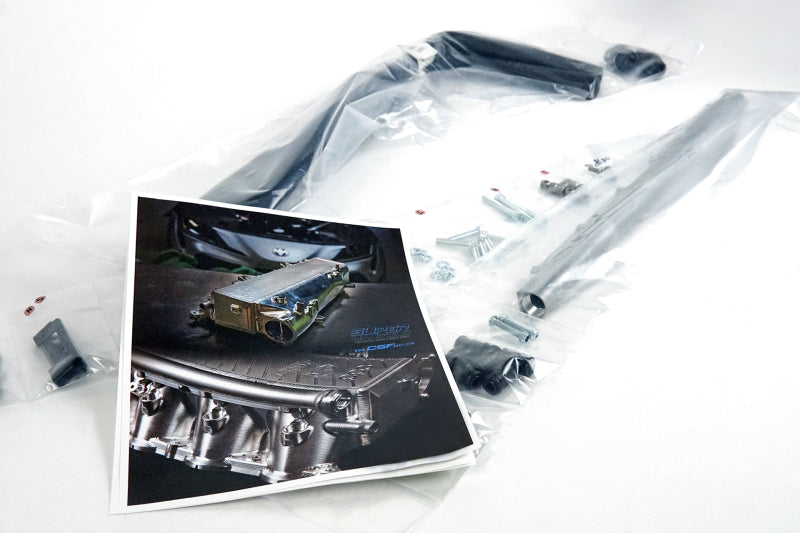

Includes Hardware and Installation Kit with Picture Diagrams Containing 28 Different Parts for Easy Installation

Can be Used With OEM or Aftermarket Engine Covers (with OEM Connections)

Comes Finished in Raw Billet Aluminum – Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia

Optional Powder-Coating and Thermal Rejection Finishes Available – CSF #8200C MSRP/MAP $4,599 USD

*CSF pressure tests each #8200 / #8200C manifold at 60-70 PSI for a period of 2-3 minutes during the Quality Control and Inspection process. The CSF manifold is not designed to operate above 60 PSI. Any users who chose to operate their vehicle with the CSF manifold over 60 PSI does so at their own risk. Operation at these pressure levels will void the CSF Limited Lifetime Warranty.
