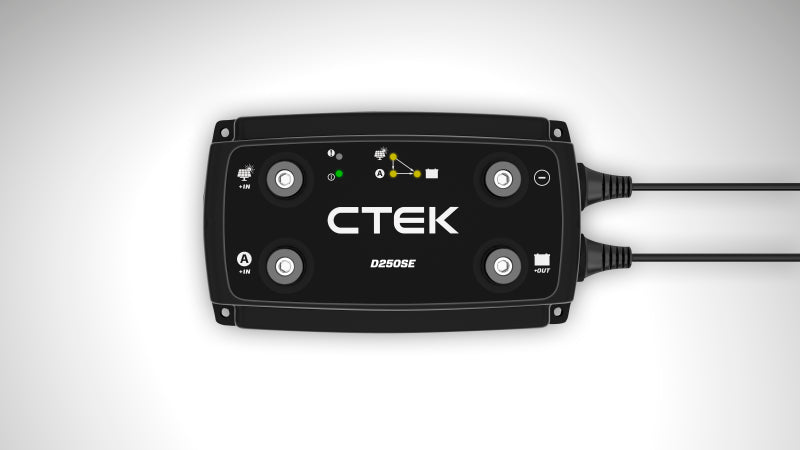

CTEK Battery Charger - D250SE - 11.5-23V Automatic 20A 5 Step 40-315

FEATURES

For professional installation services click here

20A fully automatic temperature compensated charging for batteries from 40-300AH while you’re on the move

Dual input (solar and alternator in parallel)

Smart alternator compatible

Selectable lithium* and lead-acid mode

Solar panel regulator with Maximum Power Point Tracking (MPPT

ENJOY MORE AND RELAX

The D250SE is a fully automatic, 5 step charger that supplies up to 20A of power to any 12V lead-acid or lithium* service battery from 40–300Ah. It has selectable charge algorithms for AGM and lithium* batteries and can use power through its dual input from the alternator, solar panel, and wind power. When the service battery is fully charged, the D250SE will automatically redirect maintenance charge power to the starter battery. The D250SE can maintain a stable output up to 20A to vehicles fitted with smart ECU controlled alternators and also has a temperature sensor for optimized charging, regardless of weather conditions.

(*) 12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP

With award-winning Swedish technology, the dual input D250SE allows you to enjoy your vehicle more with maximized battery capacity as the ideal charger for vehicles without access to a mains power supply.

TECHNICAL SPECIFICATIONS

Input

11.5–23V, 25A

Output

Max 14.4/14.2/14.7V, 20A max

Back current drain

Less than 1Ah/month

Ambient temperature

-4°F to +122°F (-20°C to +50°C)

Battery types

12V: WET, EFB, Ca/Ca, MF, AGM, GEL, LiFePO4

Battery capacity

40–300Ah

Insulation class

IP65 (splash and dustproof)

Warranty

2-year warranty

(*) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers has a very low back current.
