DeatschWerks DW400 Fuel Pump Module fits 14-18 Silverado Sierra 1500 9-401-7014

DeatschWerks, LLC provides high-performance fuel system solutions for the automotive aftermarket. Located in Oklahoma City, OK, DW houses all of the company?s functions including design, end-manufacturing, quality assurance, sales, marketing, and administration in its 36,000sf facility. DeatschWerks? roots were established in 2004 by offering high flow drop-in fitment fuel injectors. In 2009 DW expanded into fuel pumps with the DW300, the highest flowing in-tank fuel pump of its time. Since then, DW has developed a wide range of innovative fuel system components which include in-tank and in-line pumps, surge tanks, fuel rails, fuel filters, pressure regulators, and fuel-specific lines, fittings, and adaptors. Today, the DeatschWerks line-up of fuel system components includes over 800 SKU?s covering Sport Compact, Modern Muscle, Euro, and Powersport applications.

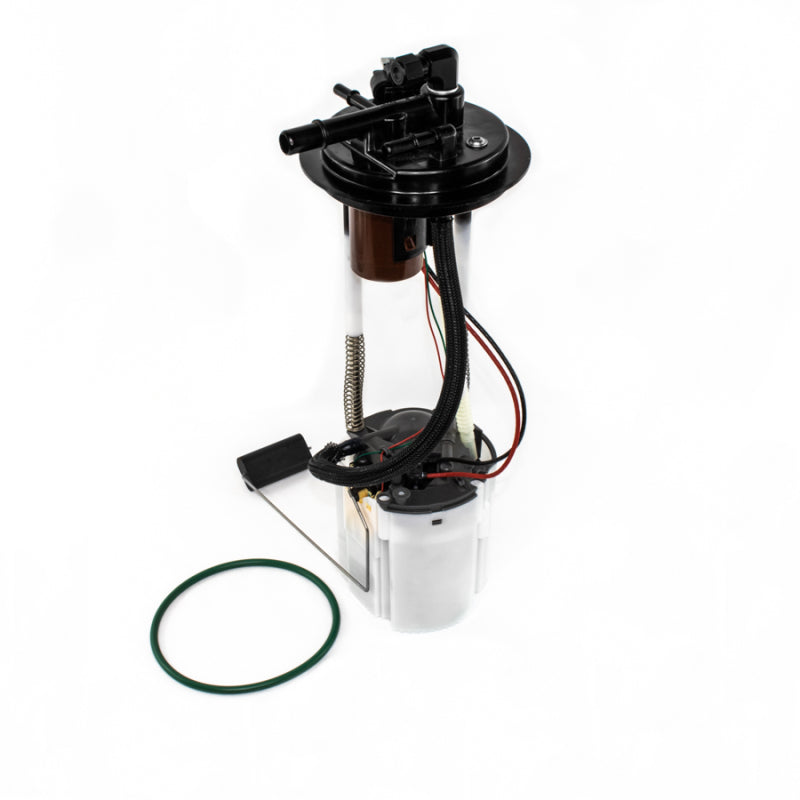

The DW400 14-18 GM Truck Module is a complete drop in replacement for the OE unit. The module incorporates the DW400 pump which out flows the OE module by more than 50%. This module also integrates seamlessly with the OE wiring harness and level sender. The module also utilizes a venturi fed surge bucket for consistent fueling at low tank levels and high G conditions.

Note: On some Installations, the clocking tab will need to be removed to install module in tank

Powered by the 415LPH DW400 Bosch pump

Specifications

Regulator Rated Working Press 3-6 BAR (43-85 psi)

AN Line Fuel Level Sender

Filtration Integrated 100µ/10µ (pre/post-pump) Low Level Pickup

Supports 750+ HP (pump gas)

Venturi bucket for low level pick up

Integrated filtration pre and post pump

DW400 Pump Module

2014-2018 GM Truck

PN: 9-401-7014

Comparative Flow Data

Wire Harness 12ga Replacement Pigtail Included Fuel Compatibility Gasoline and Ethanol

250-40Ω (Empty-Full)

Venturi Fed Bucket

Retains OE-compatible fuel level sender

This Part Fits:
