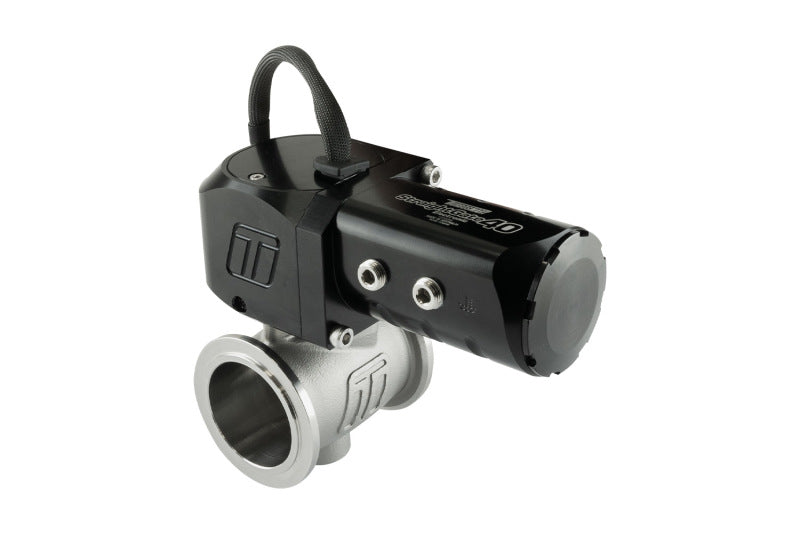

Turbosmart Electronic StraightGate ESG40 External Wastegate Black TS-0563-1002

Turbosmart Electronic StraightGate ESG40 External Wastegate - Black

The StraightGate40 from Turbosmart is the smallest butterfly-style external wastegate for tight engine bay confines and fitment. The StraightGate40 is a zero-offset butterfly-style wastegate that allows enormous flow and almost linear control with unparalleled boost control throughout the entire operating range.

Turbosmart’s eSG40 Electronic StraightGate is a Patent Pending and based on the success of the Multiple Award Winning eSG50 Electronically Actuated Butterfly Style External Wastegate. No reference hoses, no springs and no diaphragms mean full electronic control via a servo motor and Turbosmart’s zero-back drive gearbox, which results in lower current demands and operation stability against huge drive pressures. The Electronic StraightGate40 includes onboard sensors covering actuator temperature as well as valve position in both analog and digital. The Electronic actuation results in the widest possible tuning window from zero boost (if manifold priority allows) to all available boosts.

The Turbosmart StraightGate40 has been designed from the ground up and validated in-house to create a new level of control and flow, never seen in any wastegate before it. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve, which pivots centrally, resulting in a self-balanced valve against any drive pressure. This self-balancing means less work is required to actuate against even the highest of drive pressures, and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight-through valve versus a traditional poppet-style valve where the exhaust gas must be turned 90 degrees by the valve.

Available in

StraightGate40

StraightGate50

StraightGate76

Features

40mm (1.57) Butterfly Style Zero-Offset Valve

217.4 CFM / 6.16m3 per minute flow

Stainless Steel (630) Butterfly and shaft

Stainless Steel (347) Main Body

Stainless Steel (Heat Treated 431) V-Band Clamps

360 Degree Mounting options on V-Band

Clock-able Actuator Position (3 x 120 Deg Options)

Full Electronic Actuation (Dual H-Bridge Input)

Onboard (0-5v) Analog Actuator Temperature Sensor

Onboard (0-5v) Analog Valve Position Sensor

Onboard (PWM) Digital Valve Position Sensor

7 Wire Unterminated Flying Lead Loom

Liquid Cooling for Actuator Stability
