Turbosmart

Turbosmart WG40 Gen V Comp-Gate 40mm 14 PSI Black Waste Wastegate TS-0552-1012

Turbosmart WG40 Gen V Comp-Gate 40mm 14 PSI Black Waste Wastegate TS-0552-1012

TURTS-0552-1012

$393.95 USD
$437.72 USD $393.95 USD
Sale Sold out
Shipping calculated at checkout.

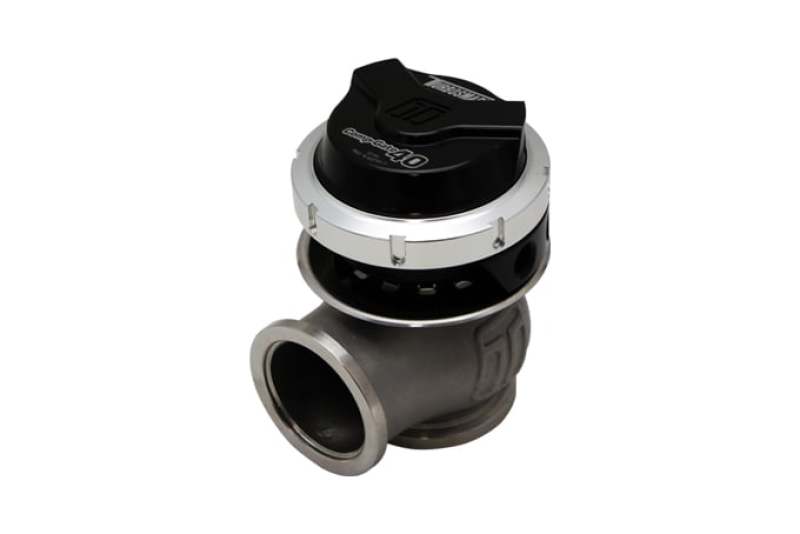

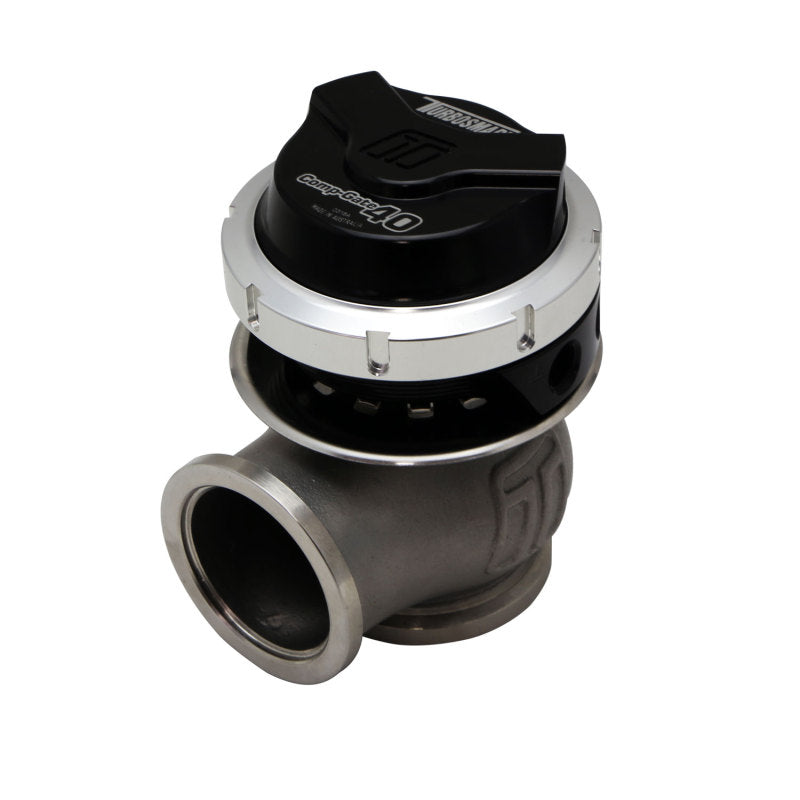

Turbosmart WG40 Gen V Comp-Gate 40mm 14 PSI Black V Band Wastegate

Part Number TS-0552-1012

The GenV WG40 CompGate40 External Wastegate is a Motorsport proven, cost effective external wastegate – The Highest Flowing Wastegate of its kind. The GenV provides extensive user configuration, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Features Turbosmart's unique  collar-locking system
Variable actuator cap and base
Strap -type V-band clamps
Liquid cooling 1/8" NPT ports
Actuators are interchangeable across the range allowing those who need a large wastegate in a tight space which will allow you to run a smaller actuator on the larger body
The unique variable adjustment design will allow the wastegate actuator base to be oriented independently from the weld flanges, the cap is also completely independent and indexable in 12 different positions compared to the actuator base and body to allow fitment in confined positions
Upgradable and serviceable
Out-flows all competitors
Liquid cooling ports for better thermal performance
14 psi spring included
1/8" NPT ports for maximum boost control and response while maintaining a high level of compatibility for fittings
Black finish

CONTENTS INCLUDE:

(1) Gen-V Compgate 40 External Wastegate
(1) Valve seat
(1) Inlet V-band clamp
(1) Inlet weld flange
(1) Outlet V-band clamp
(1) Outlet weld flange
(2) V-band clamps
Collar tool
Spring kit
Vacuum fittings
Port plugs
