Turbosmart

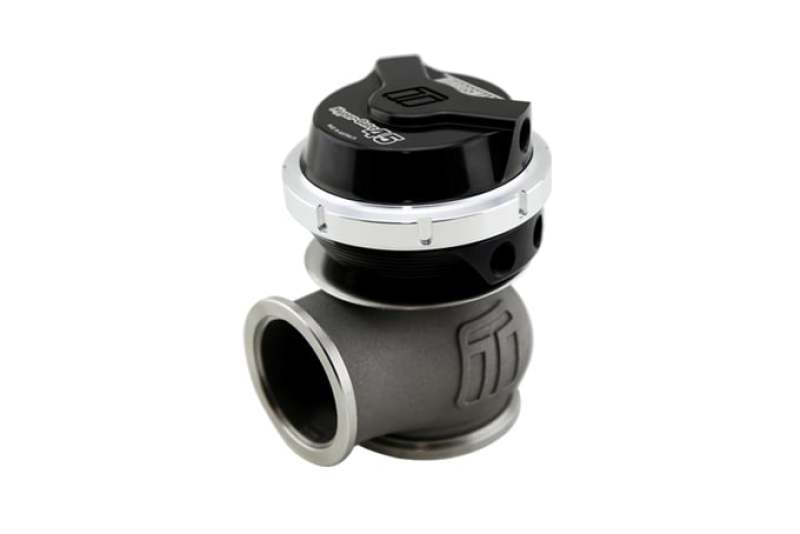

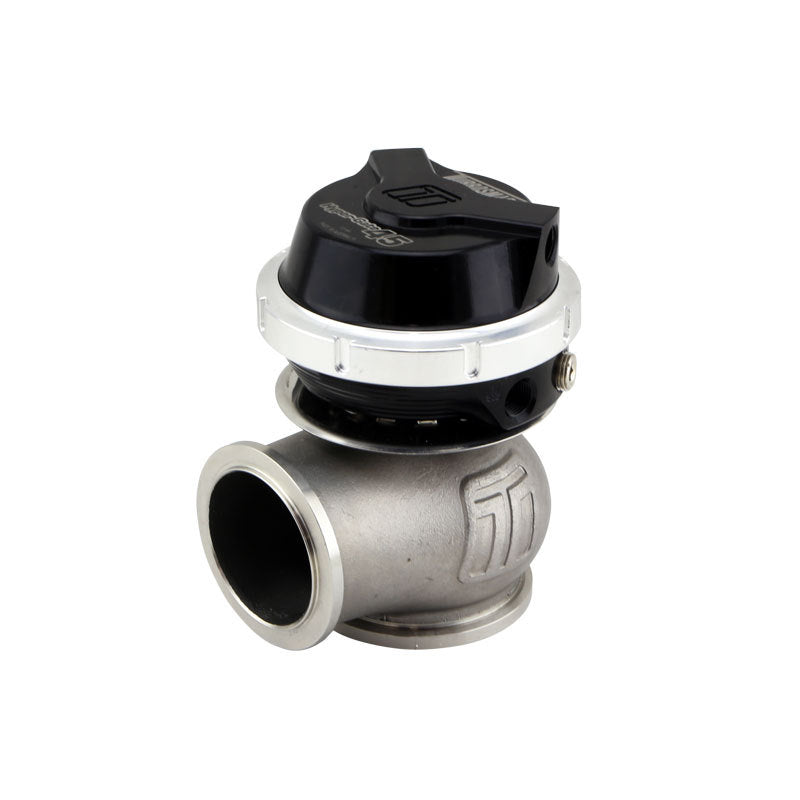

Turbosmart WG45 Gen V Hyper-Gate 45 7psi Black TS-0553-1002

Turbosmart WG45 Gen V Hyper-Gate 45 7psi Black TS-0553-1002

TURTS-0553-1002

$466.95 USD
$518.83 USD $466.95 USD
Sale Sold out
Shipping calculated at checkout.
The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management; the GenV Range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Features

Class Leading Thermal Performance

Class Leading CFD & Bench Validated Flow Performance

Class Leading Fatigue Resistance

Optional Liquid Actuator Cooling

Optional Position Sensor Available Seperately

Rotatable / Clock-able Actuator Housing

Nitronic 60 Valve Guide & High Temp 347 SS Body

17-7 PH Stainless Steel Springs

Strap Type V-band clamps

SUPPLIED WITH

GenV Wastegate unit

All Springs Included

3.5.7.14psi (1 Inst. As per Description)

Locking Collar Tool

GenV SS316 Valve seat

Strap Type V-Bands

Inlet & Outlet Weld Flanges

Hose Tail & Blank Fitting Kit

Turbosmart Decal
