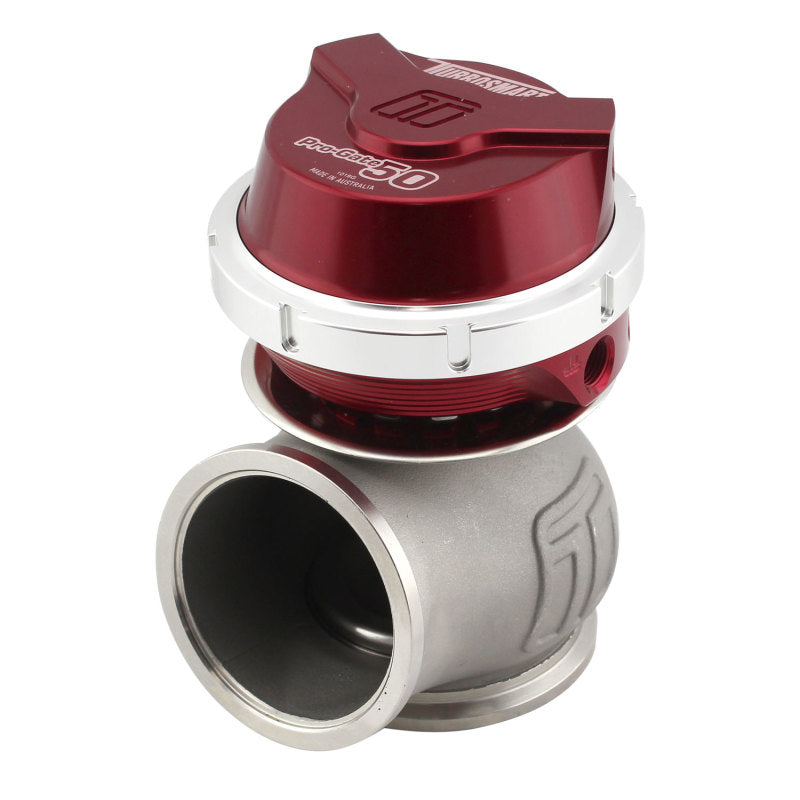

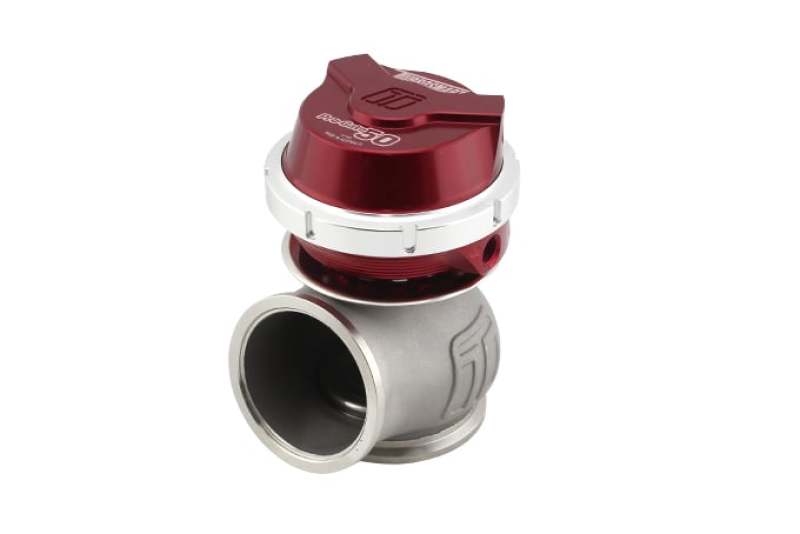

Turbosmart WG50 Gen V Pro-Gate 50 14psi Red External Wastegate TS-0554-1014

The GenV WG50 ProGate50 External Wastegate is a Motorsport-proven, cost-effective 50mm external wastegate – The Highest Flowing 50mm External Wastegate in the World! The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV Range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Features

Class Leading Thermal Performance

Class Leading CFD Driven & Bench Validated Flow Performance

Class Leading Fatigue Resistance

Optional Liquid Actuator Cooling

Optional Position Sensor Available Separately

Rotatable / Clockable Actuator Housing

50mm V-Band Fitment

Nitronic 60 Valve Guide & High Temp 347 SS Body

17-7 PH Stainless Steel Springs

Strap Type V-band clamps

SUPPLIED WITH

GenV Wastegate unit

All Springs Included

3,5,7.14psi (1 Inst. As per Description)

Locking Collar Tool

GenV SS316 Valve seat

Strap Type V-Bands

Inlet and Outlet Weld Flanges

Hose Tail and Blank Fitting Kit

Turbosmart Decal
