Turbosmart WG60 Gen V Wastegate Power-Gate 60 14psi Red Waste Gate TS-0555-1014

When Turbosmart began making performance products back in 1997, a great amount of effort was put into the design and manufacturing process to ensure our products created a new standard. More hand-crafted than mass-produced, Turbosmart products quickly gained acceptance within the performance community for their quality and reliability. Coupled with extraordinary service and after-sales support, Turbosmart quickly became one of the most sought-after names in the industry. Not much has changed since then. Although our product line and the company itself have grown considerably, the products are still designed and manufactured in our factory in Sydney, Australia, using the same tried and proven formula of innovative design, strict quality control, and rigorous testing. We have invested in our research facility manufacturing equipment and staff training to ensure our products continue to perform up to and beyond your expectations. At Turbosmart, we do not believe in cutting corners and half-measures. We do not accept anything short of perfection - and neither should you.

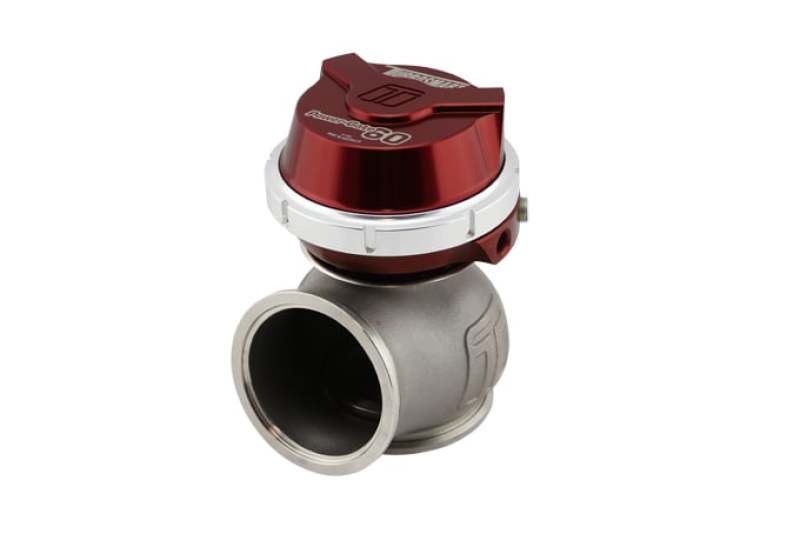

The GenV WG60 PowerGate60 External Wastegate is a Motorsport-proven, cost-effective 60mm external wastegate – The largest in the Turbosmart GenV range and the Highest Flowing ‘Poppet Style’ Wastegate in the World. The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Features

Class Leading, Thermal Performance

Class Leading, CFD & Bench Validated Flow Performance

Class Leading Fatigue Resistance

Optional Liquid Actuator Cooling

Optional Position Sensor Available Separately

Rotatable / Clock-able Actuator Housing

60mm V-Band Fitment

Nitronic 60 Valve Guide and High Temp 347 SS Body

17-7 PH Stainless Steel Springs

Strap Type V-band clamps

SUPPLIED WITH

GenV Wastegate unit

All Springs Included

3,5,7,14psi (1 Inst. As per Description)

Locking Collar Tool

GenV SS316 Valve seat

Strap Type V-Bands

Inlet and Outlet Weld Flanges

Hose Tail and Blank Fitting Kit

Turbosmart Decal
